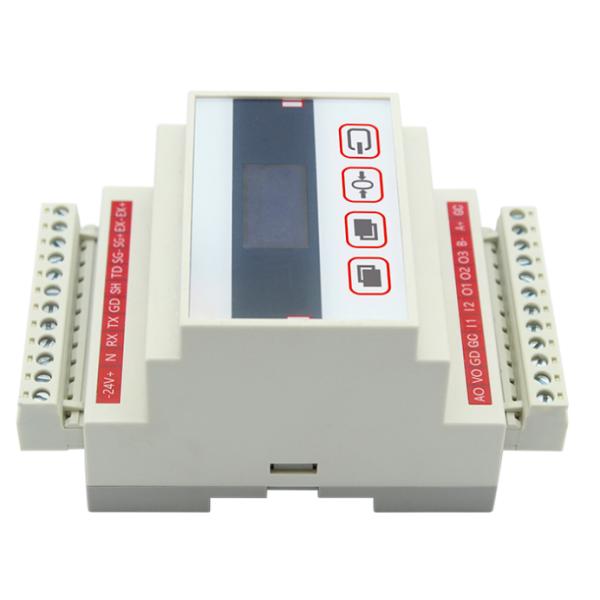

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing

Hunan Jinlian Cloud Information Technology Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing

warranty : 1 year

customized support : OEM, ODM

place of origin : Guangdong, China

brand name : SNC

accuracy : 1G

model number : DS056

type : Bench Scale, Hanging Scale, Checkweigher, CRANE SCALE

display type : Two-layer 4-digit LED display

power supply : 16-48VDC

Load cell channel : 2

Replay number : 5 (over load, full load, empty load, optical, acoustic)

Display type : 4 digits, 0.56 inch LED

OUTPUT : 4-20MA or 0-10V +485

Sensor operating voltage : DC5V

Signal hole voltage : 10-45AC/DC

Precision : 0.1%

Size : 90x84x58m3

Power Supply : power cable with 16-48 vdc voltage

Price : $90/units 1-9 units

Contact Now

DST DS056 load cell weight sensor controller 4-20mA RS485 output

Product Description

Sensorcon Product Lists
Strain Gauge Load Cell Torque Sensor Display
Linear Strain gauge-AA Wireless sensor Slip ring rotary torque sensor Platform scale display
Half bridge strain gauge-BB,HA,GB,FB Micro load cell Contactless rotary torque sensor Truck scale display
Shear/torque strain gauge-AB,HA Single point load cell Static torque sensor Controller
Full bridge strain gauge-EB, FG,FD Button load cell Meters Junction box
Tee Rosettes strain gauge-CA,BA Shear beam load cell Coupling Big screen display
Round type strain gauge S type load cell Amplifier
Semi-conductor strain gauge Column load cell
Bridge type load cell

Product Overviews

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty WeighingSignal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing

functional characteristics

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing

Technical characteristics

a. Comprehensive accuracy over 0. 1% andnonlinearity over 0.02%

b. Sampling speed3200 / s

c. Analog input signal range- 15~ 15mV

d. Display scale 999999 or 99.999

e. Bridge supply voltage: 5V/ 100mA, proportional collection

f. Temperature drift is less than 20ppm

g. Transmission Output 0~ 10 or-5~5V and 4-20mA

h. Power supply voltage: 12~30VDC, <5W

i. -20~70 Relative humidity <90% (no dew)

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing

Installation and wiring

Do not connectthe signal output input terminalsdirectly to the AC220V power supply.

Please press the instrument rear cover screen to connect the corresponding terminalcable normally. Connectthe signal output input termina lwithout the power supply to avoid electric shock.

Note that you use the DC24V power supply.

Note that carefully verify that the terminal line is correct before turning the power on.

Installation Schemram

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing

Wiring definition diagram

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing

Signal Hole Voltage 10-45AC/DC DST DS056 Load Cell Weight Sensor Controller 4-20mA RS485 Output for Heavy-Duty Weighing
