Load Cell Weight Sensor HX711 AD Weight Amplifier Module for Ar duino Scale Capacity 20kg Description SC133

Series : Micro beam load cell

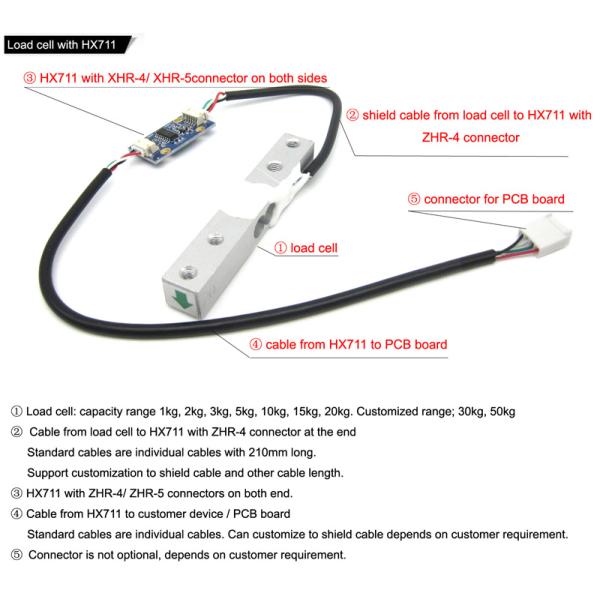

Features : load cell with HX711

Mounting Type : Screw installation

Description : HX711 Load Cell Amplifier kit, SC133

Model Number : SC133

Type : Load Cell

Place of Origin : Guangdong, China

Brand Name : SNC

Use : PRESSURE SENSOR

Theory : Resistance Sensor

Output : Analog SENSOR

Model : SC133

Capacity : 1Kg,2kg,3kg,5kg,10kg,2Okg,50kg

Material : aluminum alloy

Amplifier Type : Standard

Technology : Resistive

Function : Not Applicable

Voltage Rating : 10vdc

Output Type : 1.0MV/V

Size : micro load cell

Package / Case : glue sealing

MOQ : 10 sets

Price : $4/sets 10-99 sets

Contact Now

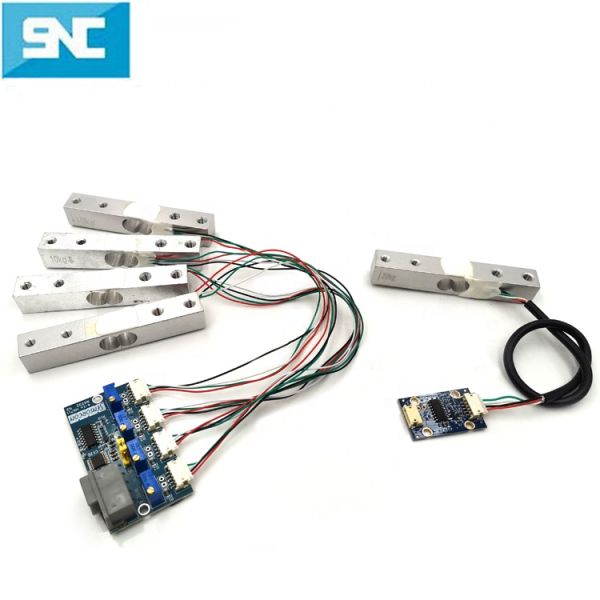

Load Cell Weight Sensor HX711 AD Weight Amplifier Module Ar duino Load Cell Amplifier HX711 AD Converter for Ar duino Scale

Product Description

Load Cell Weight Sensor HX711 AD Weight Amplifier Module for Ar duino Scale Capacity 20kg Description SC133

Parameters

Application	kitchen scale, pricing scale, small weighing scale, force test equipment
Capacity	1kg, 2kg 3kg 5kg 100kg 20kg 50kg
Comprehensive Error	0.05
Output sensitivity	1.0±0.1mV/V
Nonlinearity	0.05% F.S.
Repeatability	0.05% F.S.
Hysteresis	0.05% F.S.
Creep	0.05 (3min) % F.S.
Zero balance	0.05 (1min) % F.S.
Temperature effect on zero	0.2 % F.S./10℃
Temp. effect on span	≤0.15 F.S./10℃
Zero output	±0.1 MV/V
Input resistance	1000±50 ohm
Output resistance	1000±50 ohm
insulation resistance	≥2000 MΩ
Recommended excitation voltage	5-10V
Ultimate overload	150%F.S.
Load cell material	Aluminum alloy
Wiring	Red- input+, black- Input-. Green- Output+, White- output -

Load Cell Weight Sensor HX711 AD Weight Amplifier Module for Ar duino Scale Capacity 20kg Description SC133 '

Load Cell Weight Sensor HX711 AD Weight Amplifier Module for Ar duino Scale Capacity 20kg Description SC133

Load cell Accessorie

Load Cell Weight Sensor HX711 AD Weight Amplifier Module for Ar duino Scale Capacity 20kg Description SC133

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Load Cell Weight Sensor HX711 AD Weight Amplifier Module for Ar duino Scale Capacity 20kg Description SC133

Why Choose Us

Load Cell Weight Sensor HX711 AD Weight Amplifier Module for Ar duino Scale Capacity 20kg Description SC133

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
