IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring

Name: IOTOptimized Load Cell PCB4 with HX711 Amplifier and Voltage 26 to 55 VDC Input for Precise Weight Monitoring
Brand: Sensorcon
Price: 10 USD

Quality IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring for sale

Series : JB4-HX711

Mounting Type : screw

Description : hx711 module, HX711 LOAD CELL

Model Number : hx711 module

Type : load cell amplifier

Place of Origin : Guangdong, China

Brand Name : Sensorcon

Use : load cell signal amplify

Theory : wheatstone bridge

Output : 10Hz and 80Hz

Name : Load Cell Amplifier PCB4 HX711

Voltage : 2.6 to 5.5 VDC

Load cell quantity : 1-4 units of load cells

Power Down Current : 0.5 uA

Common Mode Input : GND +1.2v VCC -1.3V

Output Settling Time : 400ms

Input Offset Drift : 0.2mV

connector : JST connector

application : IOT , weight sensor scale

Price : $10/units 1-99 units

Contact Now

Load Cell with HX711 Amplifier Load cell PCB4 HX711 amplifier hx711 load cells hx711 module

IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring

Product Overviews

Description

The JB4-HX711 is an amplifier for load cells and strain gauges. It combines the functionality of the HX711C and the JB4 to simplify weighing installations. Multiple load cell outputs are summed and it uses the HX711 Integrated Circuit (IC) to convert the mV/V output signals from load cells into amplified digital value that can be read by a microcontroller or PLC system.

Features

24-bit Analog to Digital converter with programmable Gain
2-wire Serial Interface
Selectable data rate of 10Hz or 80Hz
Plug and play connectivity with on-board connectors
Arduino / Raspberry Pi compatible
Low-power operation in Power Down Mode

Applications

Weight systems
Stress testing machines
Commercial sensing machines
vending machine.
smart shelf.

Accessories

Cables with matching connectors

INTERFACE
Wheatstone Bridge

AVIALABLE ACCESORIES
Extra cable with connectro on one side or on both sides. Depends on your requirement.

DIMENSIONS
64 x 32 x 10 mm

SPECIFICATION

Power Supply	2.6 – 5.5V
Nominal Current	1.5mA
Power Down Current	0.5uA
Common Mode Input	GND + 1.2V VCC – 1.3V
Output Settling Time	400 ms
Input Offset Drift(Gain = 128)	0.2 mV
Temperature Drift(Gain = 128)	±5 ppm/°C
Input Common Mode Rejection (Gain = 128)	100 dB
Power Supply Rejection (Gain = 128)	100 dB

ELECTRICAL PARAMETERS

Parameter	Value	Unit
Power Supply Voltage (VCC)	5 – 12V	V
Nominal Current	> 1	mA

CONNECTION

RED	Excitation +
BLACK	Excitation -
WHITE	Output -
GREEN	Output +
YELLOW	Shield

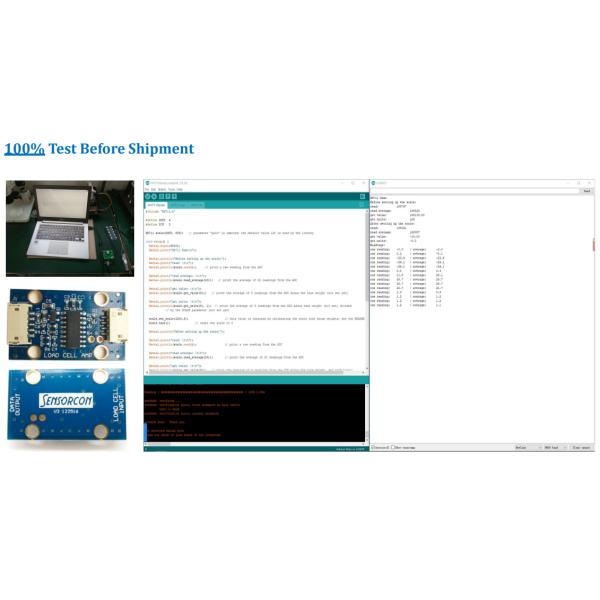

IOT-Optimized Load Cell PCB4 with HX711 Amplifier and Voltage 2.6 to 5.5 VDC Input for Precise Weight Monitoring Images
